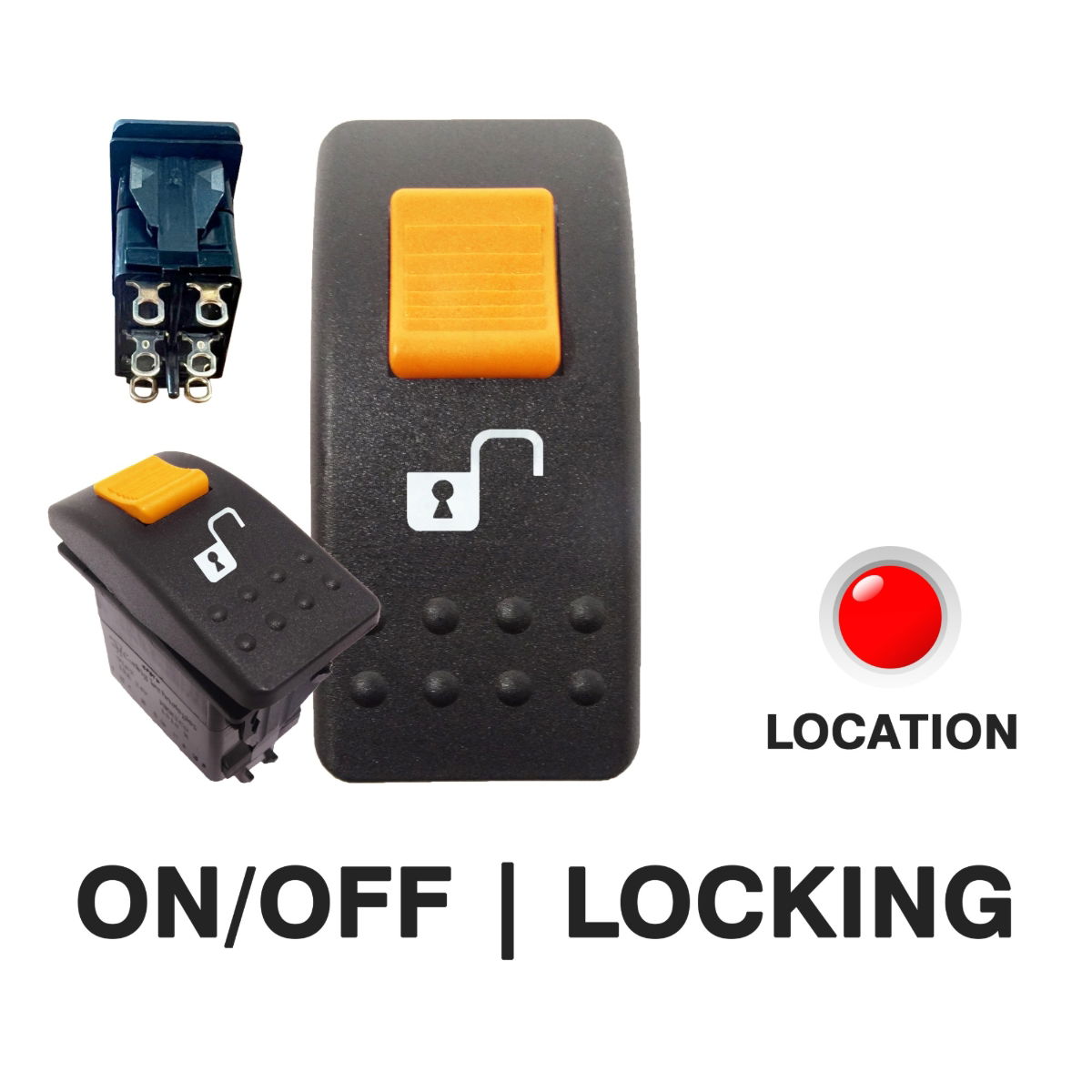

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colours, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colours. An optional plug-in terminal connector enables pre-wiring of wire harness.
Certified to IP66/68, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.
The Contura V features a symmetrical curve and can be mounted alone, in groups, or between two Contura IVs.
- 150,000 Cycles minimum
- Sealed version: IP68 rated
- Contacts: Silver cad-oxide, silver tin-oxide, fine silver
- Terminals: Brass or copper/silver plate 6.3mm Quick Connect Terminations
- LED - rated 100,000 hours 1/2 life
- LED is internally ballasted for voltages to 24VDC
- (On) represents momentary function
